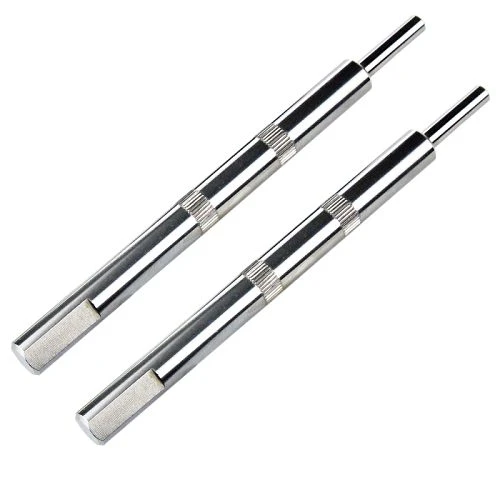

Precision Drive Shaft

Precision Drive Shaft

A Precision Drive Shaft is a critical mechanical component used to transfer torque, rotation, and power with high accuracy and minimal vibration between different parts of a machine or system. It features high dimensional accuracy, excellent surface finish, and tight tolerances to ensure reliable performance under demanding operational conditions.
Precision drive shafts are typically manufactured from high-strength materials like carbon steel, stainless steel (e.g., SUS304, SUS316, SUS440C), alloy steel, titanium, or custom materials depending on the application. Heat treatment and surface treatments (e.g., hard chrome plating or nitriding) are often used to enhance performance characteristics.

High dimensional accuracy (e.g., diameter tolerance within ±0.003 mm)
Excellent straightness (e.g., ≤0.01 mm/100 mm)
Superior surface roughness (e.g., Ra 0.2–0.4 μm)
High torsional strength and fatigue resistance
Corrosion resistance (especially when using stainless or surface-treated materials)
Customizable ends (e.g., threads, keyways, flats, splines)

Precision drive shafts are widely used in industries that demand accurate power transmission and stable mechanical performance. Common applications include:
A. Industrial Automation & Robotics
Servo motor drive systems
Linear actuators
Collaborative robots (cobots)
Gearbox and coupling systems
B. Automotive and Aerospace
Transmission systems
Steering components
Aircraft control systems
Electric vehicle powertrains
C. Medical Devices
Surgical robots
Imaging equipment (CT/MRI movement systems)
Laboratory automation
D. CNC Machinery and Tooling
CNC spindles
Machine center transmissions
Feed axis shafts
E. Consumer and Home Electronics
Electric tools
Small appliance motors
Printer/plotter drive mechanisms

Step 1: Material Selection

Based on strength, hardness, corrosion resistance, and application needs.
Common materials: SUS304, SUS316, S45C, 40Cr, Titanium Alloys, etc.

Step 2: Precision Turning & CNC Machining

High-precision CNC lathes or STAR Swiss-type machines are used to shape the shaft to exact specifications.

Step 3: Centerless Grinding / Cylindrical Grinding

To achieve tight tolerances and surface finish.

Diameter tolerance: ±0.003 mm

Roundness: ≤0.002 mm

Step 4: Heat Treatment (optional)

Induction hardening, quenching & tempering, nitriding
Improves wear resistance, torsional strength, and lifespan.

Step 5: Surface Treatment (optional)

Hard chrome plating, black oxide, nickel plating, passivation
Enhances corrosion resistance, surface hardness, or aesthetics.

Step 6: Custom End Machining

Threads, splines, grooves, tap holes, flat sections as per drawing or requirement.

Step 7: Quality Inspection

Full dimension inspection (CMM, micrometers, roughness testers)

Concentricity, runout, and hardness testing

Optional: Dynamic balancing if high-speed rotation is required

Reliabe and stable torque transmission

Long service life with low maintenance

Tailor-made solutions for specific applications

ISO9001-compliant manufacturing with full traceability
